5.28 G
5.28 gallons Spray Tank
Radar System
Phased Array Radar System
Vision
Binocular Vision System
Wind
Wind Resistance
Motors
Propulsion System - Motors
Smart Agricultrure
Smart Agriculture Cloud Platform
![Agras T25 drone Lightweight and Convenient](/img/backgrounds/midwest-air-drone-dji-t25-foldable.jpg)

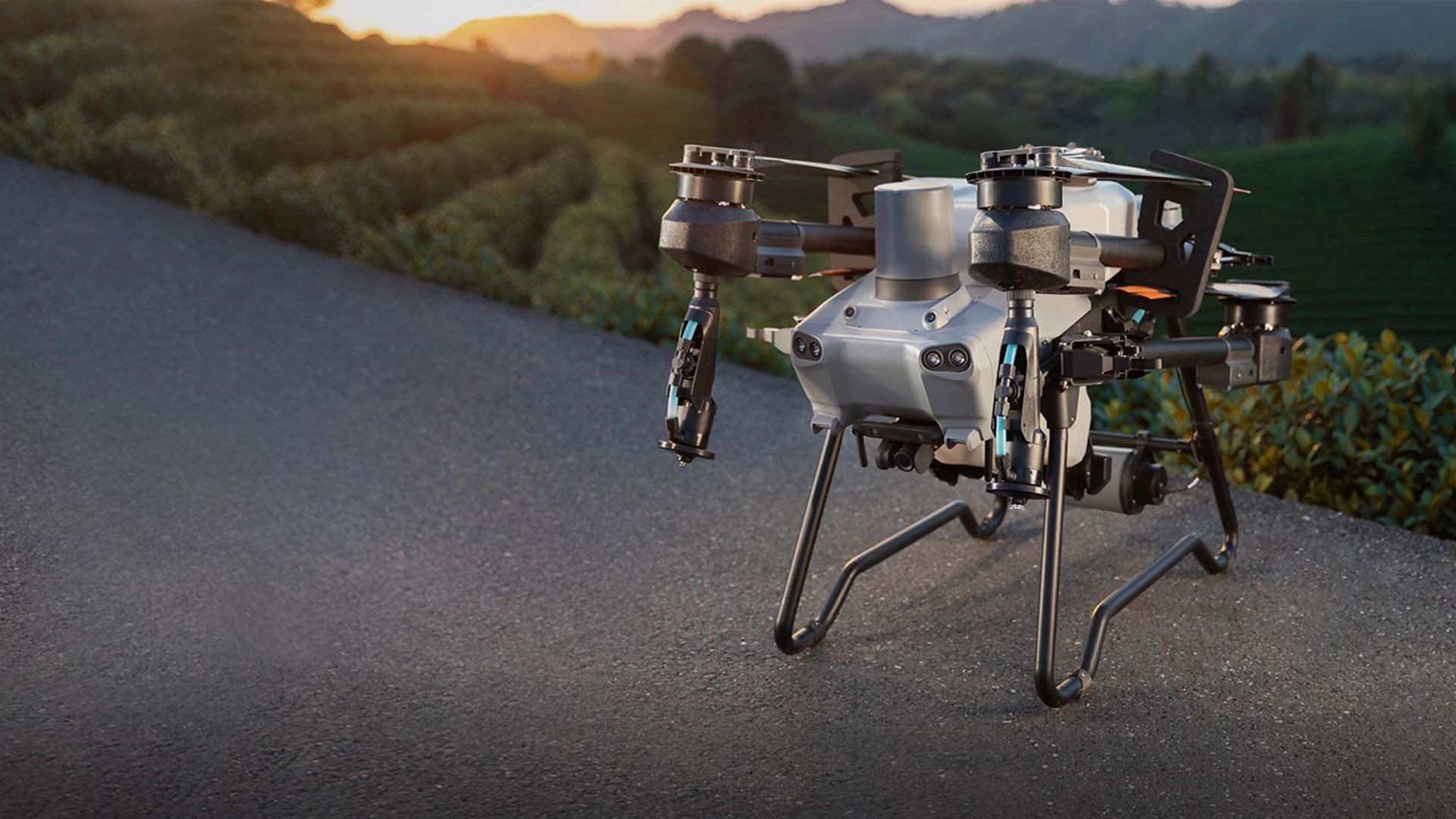

Foldable, Flexible, Functional
The DJI AGRAS 25 features a lightweight, foldable design.
- Optimized for solo operations.
- Unfolded dimensions are 21% smaller compared to its predecessor.
- Enhanced flexibility for transport, folding, takeoff, and landing.
Precision Spraying
Precision Spraying, and Additional Spraying
The DJI AGRAS T25 can be fitted with an extra pair of centrifugal sprinklers, allowing for four-sprinkler spraying.When flying manually, the Reverse Directional Spray feature simplifies operations by eliminating the need for turns.
Dual Radar System
Binocular Vision sensors
The DJI AGRAS T25 is equipped with front and rear Active Phased Array Radars, which have twice the number of RF channels, providing higher detection precision. These radars enable Multidirectional Obstacle Sensing, enhancing operational safety. Additionally, two sets of Binocular Vision sensors allow the DJI AGRAS T25 to accurately detect terrain and detail obstacles, facilitating automatic obstacle bypassing and Terrain Following over steep slopes.
Signal Stability
Better Coverage
The enhanced quad-antenna O3 Transmission system operates effectively even in areas without cellular coverage, providing a transmission range of up to 2 km. Its anti-interference capability ensures high signal quality during operations over tall crops.
Terrain Projection
Smooth Navigation
The DJI AGRAS T25 boasts an advanced terrain projection feature that significantly enhances its operational efficiency and safety. Utilizing two sets of Binocular Vision sensors, the T25 can accurately detect and map the surrounding terrain, including detailed obstacle depiction. This capability allows the drone to automatically bypass obstacles and adapt to varying landscapes through Terrain Following, ensuring smooth and precise navigation even over steep slopes.
Spreader
Fast Switching and Efficient Spreading
The DJI AGRAS T25 features a new and improved spreader system, equipped with a spiral channel spinning disk that significantly enhances spreading efficiency and smoothness. This innovative design ensures a more even and consistent distribution of materials, optimizing application rates and coverage. The enhanced spreader system not only boosts productivity but also reduces waste, making agricultural operations more cost-effective and environmentally friendly.
T25 Packages
Everything you need to be airborne today!
- 1 Full Set Propellers
- 1 Motor
- 1 Tank Lid
- 1 ESC
DJI AGRAS T25 Specifications
Aircraft Specs
Weight | 56 lbs (excl. battery) 70.5 lbs (incl. battery) |
---|---|
Max Takeoff Weight |
Max takeoff weight for spraying: 115 lbs (at sea level) Max takeoff weight for spreading: 128 lbs (at sea level) |
Max Diagonal Wheelbase | 75.79 inches |
Dimensions |
101.77 × 105.31 × 30.71 inches (arms and propellers unfolded) 58.07 × 60.63 × 30.71 inches (arms unfolded and propellers folded) 41.34 × 27.17 × 32.28 inches (arms and propellers folded) |
Hovering Accuracy Range (with strong GNSS signal) |
D-RTK enabled: Horizontal: ±3.94 inches, Vertical: ±3.94 inches D-RTK disabled: Horizontal: ±23.62 inches, Vertical: ±11.81 inches (radar module enabled: ±3.94 inches) |
RTK/GNSS Operating Frequency |
RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2 GNSS: GPS L1, BeiDou B1I, GLONASS F1, Galieo E1, QZSS L1 |
Max Configurable Flight Radius | 6561.68 feet |
Max Wind Resistance | 13.12 ft/s |
Binocular Vision System Specs
Measurement Range | 1.64 - 95.14 feet |
---|---|
Effective Sensing Speed | ≤22.37 mph |
FOV | Horizontal: 90°, Vertical: 106° |
Operating Environment | Adequate light and discernible surroundings |
Dual Atomizing Spraying System - Spray Tank
Material | Plastic (HDPE) |
---|---|
Volume | 5.28 gallons |
Operating Payload | 44.09 lbs |
Quantity | 1 |
Dual Atomizing Spraying System - Sprinklers
Model | LX8060SZ |
---|---|
Quantity | 2 |
Nozzle Distance | 53.86 inches (Rear Nozzles) |
Droplet Size | 0.002 - 0.02 inches |
Effective Spray Width | 13.12 - 23 feet (at a height of 9.84 feet above the crops) |
Dual Atomizing Spraying System - Delivery Pumps
Type | Impeller pump (magnetic drive) |
---|---|
Quantity | 2 |
Single Pump Flow Rate | 0 - 3.17 gallons/min |
Max Flow Rate | 4.23 gallons/min (2 sprinklers) 6.34 gallons/min (4 sprinklers) |
Battery Specs
Model | DB800 Intelligent Flight Battery (BAX702-30000mAh-52.22V) |
---|---|
Weight | Approximately 14.55 lbs |
Capacity | 15 Ah |
Nominal Voltage | 52.22 V |
